Air moves first.
Comfort follows.

A cooling system only cools a home if it moves enough air through itself and through the ductwork. When airflow drops, everything downstream suffers: the coil ices up, the refrigerant charge runs low, the compressor short-cycles, and rooms drift warm or cold. We measure the air path end to end before recommending anything.

  • Static pressure measured at the filter and coil
  • Duct restriction and static pressure reset
  • Balancing across supply registers
black and gray metal pipe closeup
Supply and return duct runs in a mechanical penthouse. Every run is a restriction waiting to be measured.

Section 01

What weak airflow actually looks like

These are the complaints that usually trace back to volume, not to a failed component. A blower that moves half its rated CFM still sounds and runs normally - which is why airflow problems get misdiagnosed as cooling problems.

Registers that barely move air

Cool air falls out of a register and stalls. If a vent blows a wisp while another room is fine, the branch is likely restricted or the trunk is starved, not undersized at the coil.

A filter you cannot see through

A loaded filter can add several inches of static pressure on its own. High static across the filter drops system airflow, which drops coil airflow, which drops capacity - all before any refrigerant issue exists.

Ice on the coil or line set

When airflow drops, the evaporator coil can get below freezing. R-410A and R-454B systems do this more readily than many people expect. Ice on the suction line or a wet pan is an airflow signal first.

Collapsed or crushed flex duct

Flex duct bent tight around a joist, kinked under a slab, or compressed by insulation loses a large share of its rated capacity. This is one of the most common and least expensive airflow faults to correct.

Blocked or undersized returns

Furniture, curtains, and closed doors over return grilles create pressure in the room and starve the rest of the house. Total return area needs to roughly match total supply area for the system to breathe.

Uneven temperatures room to room

One bedroom ten degrees off the rest of the floor is a distribution problem until proven otherwise. Balancing supply registers and verifying return paths usually resolves it faster than lowering the setpoint.

Rattling or whining blower noise

A worn blower wheel sheds blades, and a dirty squirrel cage packs dust onto the wheel. Both reduce output and add noise. A failing motor may still spin but never reach its rated speed.

Short cycling and constant starting

Low airflow trips low-pressure or freeze protection switches, so the system starts, freezes, shuts down, and repeats. Capacitors and contactors can also fail under repeated hard starts.

Section 02

HVAC services built around measured airflow

We diagnose the air path first because most complaints resolve there. Repairs and replacements come after the numbers, not before them.

01

Static pressure and airflow testing

Manometer readings at the return, filter, coil and supply plenum, plus total system CFM compared against the equipment's rated CFM. This one test separates most airflow complaints into a specific fault.

02

Duct repair, sealing and resizing

Mastic sealing of disconnected joints, replacement of crushed flex runs, correct transitions from trunk to branch, and re-sizing under-sized ducts where the existing plenum size allows it.

03

Blower service and motor repair

Squirrel cage cleaning, blade set inspection and balancing, bearing and shaft checks on belt-driven blowers, and replacement of ECM or PSC blower motors that fail to hold rated speed.

04

Filter and coil upgrades

Moving to a higher filtration media or a larger filter cabinet drops static pressure and improves air quality at the same time. Coils are washed, not just rinsed, and combed where fins are bent.

05

Balancing and TAB

Testing, adjusting and balancing across supply registers so rooms hold temperature together. Where static pressure is off target, we address it at the source rather than closing dampers and hiding it.

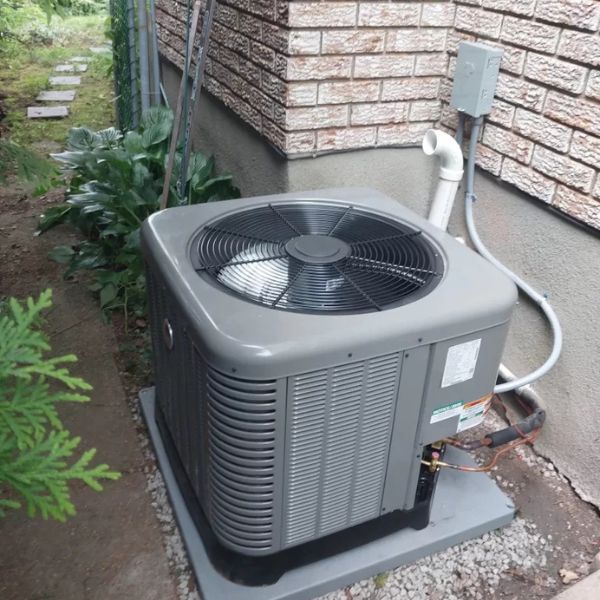

industrial ventilation duct on a textured wall at night
Reading the system at the unit, not only at the thermostat.

Section 03

Ductwork: where most airflow is lost

The equipment is the easy part. A correctly sized air handler delivering 1,200 CFM is irrelevant if the ductwork only accepts 700. Restriction is cumulative - every crushed run, every open return, every undersized trunk adds up.

Trunk and branch sizing

Friction loss rises steeply as ducts get smaller and longer. Branches sized off the original layout but serving modern high-CFM equipment is a frequent retrofit problem. Velocity targets, not aesthetics, decide branch diameter.

Flex duct performance

Flex is flexible, not soft. The rated capacity of flex duct depends on keeping a smooth curve with no kinks, adequate inner liner support, and compression below the manufacturer's limit. Sharp bends and crushed runs can halve delivered CFM.

Plenums and transitions

The supply plenum and return plenum set the tone for everything downstream. A sudden reduction in cross-sectional area, a missing transition, or a cabinet filter rack smaller than the blower inlet forces the system to work harder for less air.

Register and grille selection

Register CFM and throw need to match room size and ceiling height. Too few oversized registers dump air into one corner of a room; too many undersized ones add static and noise. Damper position is the last adjustment, not the first.

a bunch of metal pipes in a room

Signs of a restricted duct system

  • Registers that hiss without pushing air into the room
  • Rooms furthest from the air handler run coolest or warmest
  • Loud whistling in the trunk duct when the fan is on high
  • Ducts you can hear but not feel at the outlet
  • Return grilles with no nearby supply register to balance against
  • Visible gaps at register boots, plenum joints or floor penetrations

Duct sizing for a replacement system should be calculated with Manual J and Manual S, then verified on site. Guessing at round duct sizes is how oversized equipment ends up short on airflow in every room at once.

Section 04

Indoor air quality and filtration

Filtration, moisture control and ventilation are the three levers a residential system actually has. Each one affects airflow, which is why they are discussed together rather than sold separately.

Filtration grade and pressure drop

Higher MERV ratings capture finer particles but resist airflow more. A MERV 13 filter in a cabinet designed for a 1-inch filter will raise static pressure noticeably. If the cabinet is undersized, a media rack or a custom return grille filter avoids that penalty.

Humidity and the coil

Indoor humidity above roughly 60% encourages mold and dust mites and can cause the evaporator coil to sweat and freeze. Below about 30% brings static electricity and comfort complaints. The coil and pan are part of moisture control, not just cooling hardware.

Whole-house ventilation

Tight modern homes need mechanical ventilation to dilute combustion gases, cooking aerosol, and everyday humidity. ERV or HRV equipment must be ducted into the return path, not into the attic or a soffit, or it will short-circuit.

Air cleaners and ionization

In-duct particle cleaners, UV-C lamps on the coil, and ionization devices can reduce airborne contaminants, but only if the airflow through the unit is correct. A purifier placed in a starved duct does almost nothing.

Section 05

Thermostats, zoning and control

The thermostat sets the demand, not the delivery. It is also where most diagnostics can be confirmed or dismissed in seconds - which makes it a useful starting point, not a solution.

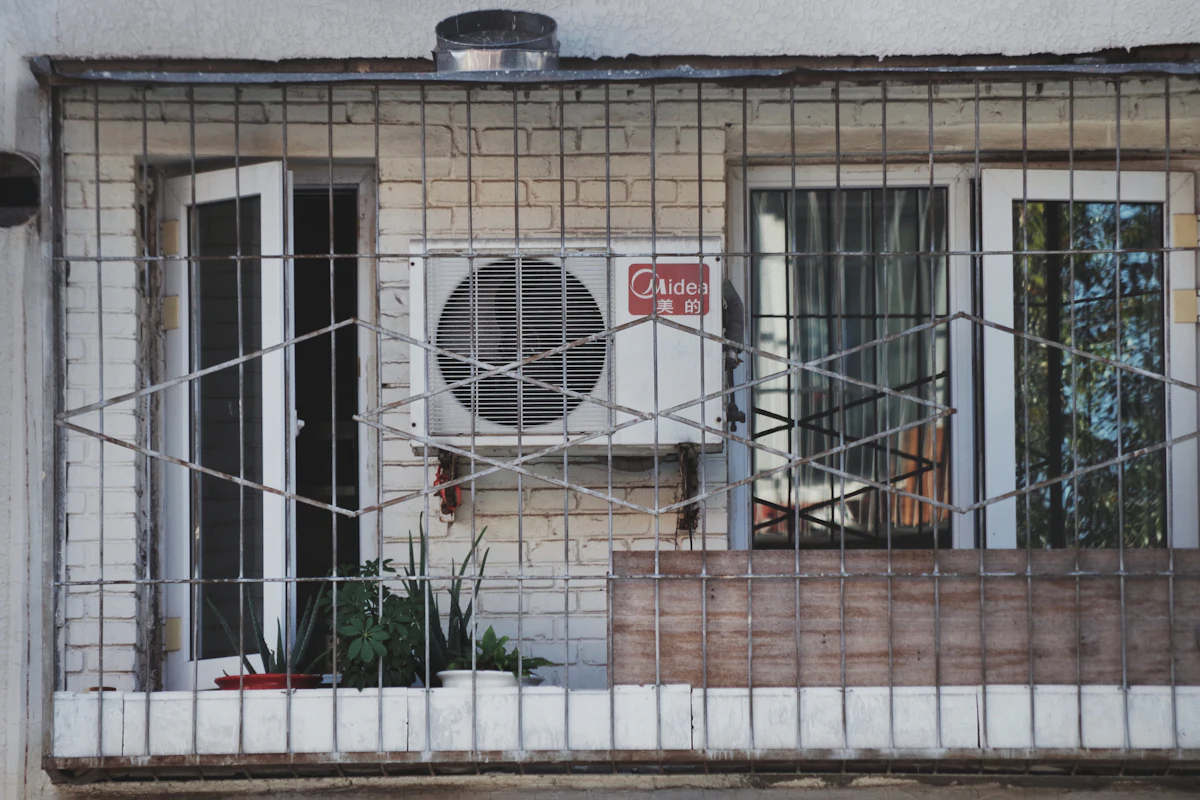

air conditioner on the side of a building
Room comfort depends on air actually reaching the occupied zone.

Programmable and smart thermostats

A thermostat with a schedule can hold a setback overnight and a recovery period in the morning without manual changes. Wi-Fi models add remote access and runtime data, which helps separate a comfort complaint from a capacity complaint.

Zoning and dampers

Zoned systems save energy by closing motorized dampers on unused zones - which raises static pressure in the active zones. Damper sizing and minimum airflow have to be planned so the blower does not simply shift the problem.

Remote and wireless sensors

Placing a return-air sensor next to a hot return register makes the thermostat read higher than the actual room temperature. Sensors in living spaces and a return sensor on a short throw give a much truer control signal.

Low-voltage wiring

Thermostat wires carry 24 volts, but mislanding them, using the wrong wire gauge, or leaving a common wire disconnected causes symptoms that look like equipment failures. Wiring is checked before a control board is ever replaced.

Setpoints and expectations

Typical cooling setpoints sit between 72 and 78 Â°F with a setback when nobody is home. A thermostat cannot deliver capacity the ductwork and coil never delivered, so it is set last in the process.

Section 06

Maintenance that protects airflow

Most maintenance items on this list are cheap. The ones that are skipped are the ones that quietly reduce airflow and shorten equipment life.

Filter changes on schedule

Check monthly and change when loaded. Write the date on the filter frame. In a dusty environment or with a pet, the interval shortens noticeably.

Condensate pan and float switch

Clean the pan, confirm the float switch opens and closes, and flush the drain line with water. A plugged drain floods a ceiling, and a failed float switch can stop a furnace mid-cycle.

Evaporator coil cleaning

A coated coil raises the pressure drop across it and cuts airflow. Clean it, and straighten fins with a comb where rodents or construction debris have bent them.

Capacitor and contactor check

Run capacitors swell and fail with age and heat. A weak capacitor shows up as a hard start, a stuck contactor, or a blower that never reaches full speed.

Blower inspection

Look at the squirrel cage for dust packing and blade loss, tighten the housing, and check belt tension on belt-driven units. Noise and vibration are early indicators.

Static pressure trend

Record filter and coil pressure readings year over year. A rising trend points to duct leakage, a settling filter, or a developing restriction before comfort visibly drops.

various tools laid out on workbench

Reactive versus planned service

Reactive callouts usually start with a comfort complaint. Planned service includes a static pressure baseline, a filter review, a drain flush, and a look at the return path. Keeping the baseline is what makes the next callout diagnosable instead of speculative.

Section 07

How the air actually travels

One continuous circuit from the outdoor unit to the registers and back. Each node is a place where airflow can be gained, lost, or measured.

Residential central air path diagram Air path sequence: outdoor unit, line set, air handler, filter, blower, coil, supply duct, registers, return duct, return plenum, returning to the air handler. Outdoor Unit Condenser that rejects heat to the outdoors Line Set Insulated refrigerant lines between indoor and outdoor Air Handler Cabinet containing the filter, blower and evaporator coil Filter Traps dust before it reaches the coil, and adds pressure drop Blower Motor and squirrel cage wheel push the air along Evaporator Coil Absorbs heat from the air as refrigerant evaporates Supply Duct Trunk and flex branches carrying cool air to the rooms Registers Supply air terminals that deliver air into each room Return Duct Brings room air and return grilles back to the unit Return Plenum Collection box feeding the air back into the handler
  1. Outdoor UnitCondenser that rejects heat to the outdoors
  2. Line SetInsulated refrigerant lines between indoor and outdoor
  3. Air HandlerCabinet containing the filter, blower and evaporator coil
  4. FilterTraps dust before it reaches the coil, and adds pressure drop
  5. BlowerMotor and squirrel cage wheel push the air along
  6. Evaporator CoilAbsorbs heat from the air as refrigerant evaporates
  7. Supply DuctTrunk and flex branches carrying cool air to the rooms
  8. RegistersSupply air terminals that deliver air into each room
  9. Return DuctBrings room air and return grilles back to the unit
  10. Return PlenumCollection box feeding the air back into the handler

Where pressure is measured

Static pressure is read upstream of the filter and across the coil. Excess pressure at either point means the blower is fighting something, and the delivered CFM falls even when the fan sounds healthy.

Why the circuit has to close

The blower pulls air in at the return plenum and pushes it out at the supply registers. Unbalanced supply and return areas raise pressure in the rooms and starve the far end of the duct system.

What this means for service

Every complaint about temperature in a room is really a question about where the air went. Tracing the path from both ends finds the answer faster than adjusting the thermostat.

Section 08

Request service or a callback

Tell us what the system is doing rather than what you think is broken. Room temperatures, which registers blow air, whether the filter is new, and whether ice appears on the line set all narrow the diagnosis before anyone arrives.

Phone +1(983)207-4309 · Hours 7am to 6pm, Mon to Sun

Email [email protected] or use the form. For a same-day callback, mark the preference and describe the symptom.

Address 426 Fifth St, Frederick, CO 80530

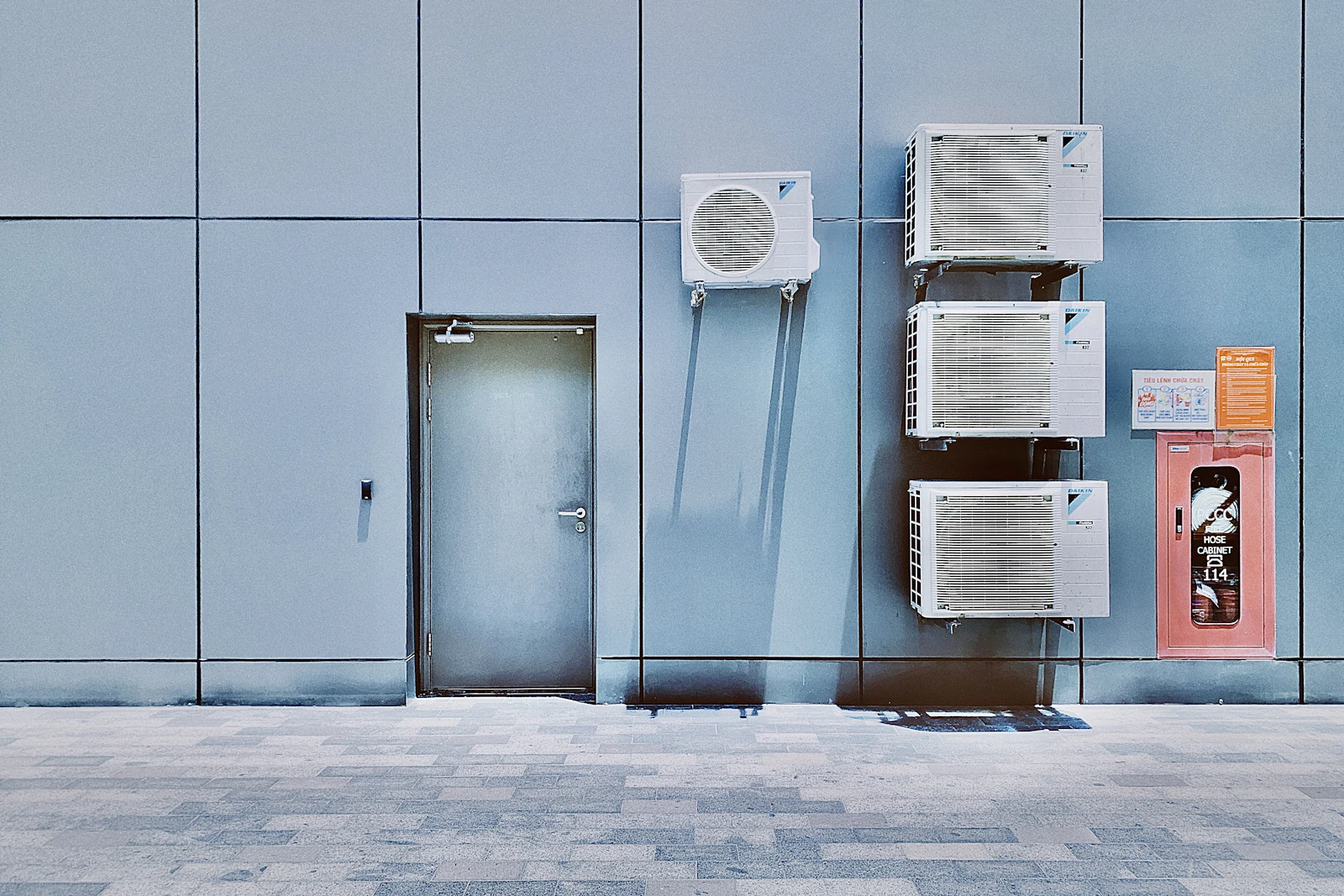

couple of air conditioners on the side of a building
